Pipe Fittings

• Application
• other, Food, Dairy, Beverage, Pharmaceutical, Chemical Industries

• Color
• Metallic Silver

• Connection
• Other, Tri-Clamp (TC) End

• Connection Type
• Clamp

• Diameter
• Various (customizable as per requirement)

• Flexibility
• Rigid

• Length
• As per specification

• Material
• Stainless Steel

• Material Grade
• SS304 / SS316L

• Outer Diameter
• 25 mm to 104 mm

• Product Type
• Other, TC End Concentric Reducer

• Rated Pressure
• 10 Bar

• Sealing Type
• Gasket (as per standard)

• Section Shape
• Round

• Shape
• Other, Concentric Reducer

• Standard
• Other, DIN, SMS, 3A, ISO

• Surface Treatment
• Other, Polished

• Temperature Range
• -20C to 180C

• Tensile Strength
• 515 MPa

• Thickness
• 1.5 mm to 3 mm

• Tolerance
• 0.1 mm

• Usage
• Pipeline Fittings

• Yield Strength
• 205 MPa

• Application
• other, Process Piping, Fluid Transfer

• Bend Radius
• 90

• Color
• Silver

• Connection
• Other, Tri-Clamp (TC) End

• Connection Type
• Clamp

• Diameter
• Varies (as per selection)

• Flexibility
• Rigid

• Length
• Customizable

• Material
• Stainless Steel

• Material Grade
• SS304 / SS316 / SS316L

• Outer Diameter
• 1/2 inch to 4 inch (12.7 mm to 101.6 mm)

• Product Type
• Other, SS TC End Tee

• Rated Pressure
• Up to 10 Bar

• Sealing Type
• Gasket (Silicone/EPDM/PTFE)

• Section Shape
• Round

• Shape
• Other, Tee

• Standard
• Other, ASTM A403 / ASME B16.9

• Surface Treatment
• Other, Polished

• Temperature Range
• -20C to 200C

• Tensile Strength
• 515 MPa (Min)

• Thickness
• 1.5 mm - 3 mm

• Tolerance
• 0.1 mm

• Usage
• Industrial/Pharmaceutical/Food Industry

• Yield Strength
• 205 MPa (Min)

• Application
• other, Pipeline Fitting

• Color
• Silver

• Connection
• Other, Tri-Clamp (TC)

• Connection Type
• Clamp Connection

• Diameter
• 38 mm

• Flexibility
• Rigid

• Length
• 100 mm

• Material
• Stainless Steel

• Material Grade
• SS304 / SS316

• Outer Diameter
• 38 mm

• Product Type
• Other, TC End Cross

• Rated Pressure
• 10 bar

• Sealing Type
• Gasket Seal

• Section Shape
• Round

• Shape
• Other, Cross

• Standard
• Other, DIN, ASTM, ISO

• Surface Treatment
• Other, Polished

• Temperature Range
• -20C to +180C

• Tensile Strength
• 520 MPa

• Thickness
• 1.5 mm

• Tolerance
• 0.1 mm

• Usage
• Food, Pharma, Chemical Industries

• Yield Strength
• 210 MPa

• Application
• other, Food, Dairy, Pharmaceutical, Chemical, Brewery Industries

• Coating Type
• Uncoated / Natural Finish

• Color
• Metallic Silver

• Connection
• Other, Tri-Clamp / TC

• Connection Type
• Female Adapter, Weldable/Clampable

• Diameter
• 1 to 4 (custom sizes available)

• Flexibility
• Rigid

• Length
• Varies by size, typically 30 mm - 80 mm

• Material
• Stainless Steel

• Material Grade
• SS304 / SS316 / SS316L

• Outer Diameter
• 25 mm - 102 mm (custom size available)

• Product Type
• Other, TC End Female Adapter

• Rated Pressure
• Up to 10 Bar

• Sealing Type
• Gasket Seal with Clamp

• Section Shape
• Other, Circular

• Shape
• Round

• Standard
• Other, DIN / ISO / SMS / 3A

• Surface Treatment
• Other, Polished

• Temperature Range
• -40C to +200C

• Tensile Strength
• Up to 580 MPa (SS316)

• Thickness
• 1.5 mm - 3 mm

• Thread Type
• N/A (Tri-Clamp End)

• Tolerance
• 0.05 mm

• Usage
• Sanitary Pipe Fitting

• Yield Strength
• Up to 290 MPa (SS316)

• Application
• other, Pharmaceutical, Food, Chemical, Dairy Industries

• Coating Type
• Uncoated

• Color
• Silver

• Connection
• Other, Welded

• Connection Type
• Butt Weld

• Diameter
• Available as per specification

• Flexibility
• Rigid

• Length
• Standard / Custom

• Material
• Stainless Steel

• Material Grade
• SS304 / SS316 / SS316L

• Outer Diameter
• 1/2 to 4 (12.7 mm to 101.6 mm)

• Product Type
• Other, Weldable Union

• Rated Pressure
• Up to 150 psi

• Sealing Type
• Gasket or Metal to Metal

• Section Shape
• Other, Circular

• Shape
• Round

• Standard
• Other, ASTM A182 / ASME SA182

• Surface Treatment
• Other, Polished

• Temperature Range
• -20C to 400C

• Tensile Strength
• 515 MPa (min) for SS304

• Thickness
• 3 mm - 8 mm (as per requirement)

• Tolerance
• 0.1 mm

• Usage
• Industrial Pipe Fitting

• Yield Strength
• 205 MPa (min) for SS304

• Application
• other, Industrial, Pharmaceutical, Food & Beverage, Dairy

• Color
• Silver

• Connection
• Other, Tri Clamp (TC End)

• Connection Type
• Clamp/TC End

• Diameter
• 1/2 inch - 2 inch available

• Flexibility
• Rigid

• Length
• Customized/Standard

• Material
• Stainless Steel

• Material Grade
• SS304 / SS316 / SS316L

• Outer Diameter
• 25.4 mm (1 inch), 38.1 mm (1.5 inch), or as required

• Product Type
• Other, Spray Ball Fitting

• Rated Pressure
• Up to 10 bar

• Sealing Type
• Gasket

• Section Shape
• Round

• Shape
• Other, Ball

• Standard
• Other, DIN, SMS, ISO, 3A

• Surface Treatment
• Other, Polished

• Temperature Range
• -20C to 200C

• Tensile Strength
• 520 MPa (min)

• Thickness
• 2 mm

• Tolerance
• 0.05 mm

• Usage
• CIP (Clean-In-Place) Systems

• Yield Strength
• 210 MPa (min)

• Application
• other, Oil & Gas, Water Supply, Chemical Industry, Petrochemical

• Bend Radius
• Standard as per ASME B16.9

• Color
• Silver

• Connection
• Other, Butt Weld

• Connection Type
• Butt Weld

• Diameter
• As per requirement

• Flexibility
• Rigid

• Length
• Customizable

• Material
• Stainless Steel

• Material Grade
• SS304 / SS316 / SS316L

• Outer Diameter
• 1/2 inch to 48 inch

• Product Type
• Other, Reducer

• Rated Pressure
• Sch 10 to Sch 160

• Sealing Type
• Metal-to-Metal

• Section Shape
• Round

• Shape
• Other, Concentric / Eccentric

• Standard
• Other, ASTM A403 / ASME B16.9

• Surface Treatment
• Other, Polished / Pickled

• Temperature Range
• -20C to 800C

• Tensile Strength
• 520 MPa min

• Thickness
• 1.5 mm - 10 mm

• Thread Type
• N/A (Welded)

• Tolerance
• 0.1 mm

• Usage
• Pipe Fitting / Flow Reduction

• Yield Strength
• 205 MPa min

• Application
• other, Fluid distribution in process pipelines

• Bend Radius
• Standard Y-bend

• Color
• Silver

• Connection
• Other, Tri Clamp (TC) End

• Connection Type
• Clamp

• Diameter
• 38 mm

• Flexibility
• Rigid

• Length
• 150 mm

• Material
• Stainless Steel

• Material Grade
• SS 304 / SS 316

• Outer Diameter
• 38 mm (1.5 inch TC)

• Product Type

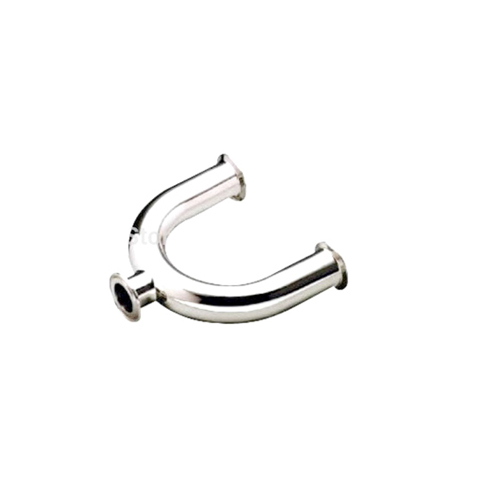

• Other, Y Loop Fitting

• Rated Pressure
• 10 bar

• Sealing Type
• Gasket (compatible with TC)

• Section Shape
• Round

• Shape
• Other, Y-Shaped Loop

• Standard
• Other, DIN, ISO, ASTM

• Surface Treatment
• Other, Polished

• Temperature Range
• -20C to 180C

• Tensile Strength
• 520 MPa

• Thickness
• 1.5 mm

• Tolerance
• 0.1 mm

• Usage
• Sanitary, Pharmaceutical, Food and Beverage

• Yield Strength
• 210 MPa

• Application
• other, Industrial, Plumbing, Chemical Processing

• Bend Radius
• Short Radius (R = 1D)

• Color
• Silver

• Connection
• Other, Welded

• Connection Type
• Butt Weld

• Diameter
• 50 mm

• Flexibility
• Rigid

• Length
• Short Radius

• Material
• Stainless Steel

• Material Grade
• SS304 / SS316

• Outer Diameter
• 50 mm

• Product Type
• Other, 45 Degree Short Elbow

• Rated Pressure
• 150 PSI

• Sealing Type
• Metal to Metal

• Section Shape
• Round

• Shape
• Other, Elbow

• Standard
• Other, ASTM A403 / ASME B16.9

• Surface Treatment
• Other, Polished

• Temperature Range
• -20C to 350C

• Tensile Strength
• 580 MPa

• Thickness
• 2.5 mm

• Thread Type
• Not Threaded

• Tolerance
• 0.5 mm

• Usage
• Pipe Fitting

• Yield Strength
• 260 MPa

• Application
• other, Fluid & gas transfer, pipeline connection

• Bend Radius
• Standard: 1.5D

• Coating Type
• Uncoated

• Color
• Silver

• Connection
• Other, Tri Clover (TC) End

• Connection Type
• Clamp (Tri Clamp/TC)

• Diameter
• 25.4 mm to 101.6 mm

• Flexibility
• Rigid

• Length
• Standard: 150 mm, Custom lengths on request

• Material
• Stainless Steel

• Material Grade
• SS 304 / SS 316 / SS 316L

• Outer Diameter
• 1 to 4 (custom sizes available)

• Product Type
• Other, Sanitary Pipe Fitting

• Rated Pressure
• Up to 10 Bar

• Sealing Type
• Requires Gasket (Silicone, EPDM, PTFE)

• Section Shape
• Round

• Shape
• Other, Bend

• Standard
• Other, ASTM A403 / ASME B16.9

• Surface Treatment
• Other, Electro Polished

• Temperature Range
• -20C to 180C

• Tensile Strength
• 515 MPa (min)

• Thickness
• 1.2 mm - 3 mm

• Thread Type
• Not Applicable (Clamp Connection)

• Tolerance
• 1 mm

• Usage
• Pharmaceutical, Food, Beverage, Dairy, Chemical Industries

• Yield Strength
• 205 MPa (min)

• Application
• other, Pharmaceutical, Food, Beverage, Dairy, Chemical, Biotech industries

• Bend Radius
• NA (not applicable to blind ends)

• Coating Type
• Uncoated

• Color
• Silver

• Connection
• Other, Tri-Clamp (TC)

• Connection Type
• Tri-Clamp

• Diameter
• DN15 to DN150

• Flexibility
• Rigid

• Length
• Custom/Standard sizes

• Material
• Other , Stainless Steel (SS)

• Material Grade
• SS 304 / SS 316 / SS 316L

• Outer Diameter
• 1/2 inch to 6 inch

• Product Type
• Other, TC Blind Fittings

• Rated Pressure
• Up to 10 bar

• Sealing Type
• Gasket (Silicone, EPDM, PTFE compatible)

• Section Shape
• Other, Circular

• Shape
• Round

• Standard
• Other, ASTM A403 / ASME BPE

• Surface Treatment
• Other, Polished

• Temperature Range
• -20C to +200C

• Tensile Strength
• 520 - 750 MPa

• Thickness
• 1.5 mm to 3 mm

• Thread Type
• NA (Non-threaded)

• Tolerance
• 0.1 mm

• Usage
• Sealing or blanking process line ends

• Yield Strength
• 205 - 310 MPa

• Application
• other, Pipeline Liquid Filtration

• Color
• Silver

• Connection
• Other, Flanged

• Connection Type
• Flanged

• Diameter
• 100 mm

• Flexibility
• Rigid

• Length
• 250 mm

• Material
• Stainless Steel

• Material Grade
• SS 304/SS 316

• Outer Diameter
• 100 mm

• Product Type

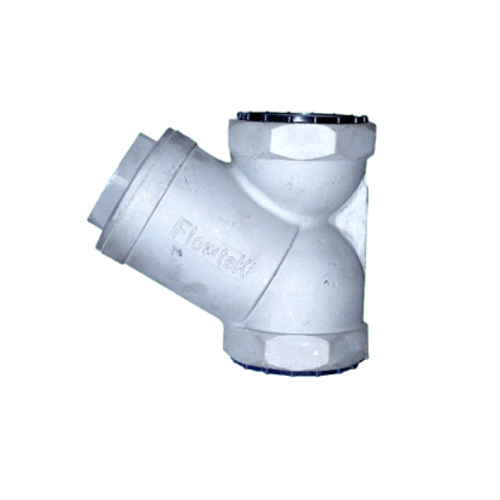

• Other, SS IC Strainer

• Rated Pressure
• 10 Bar

• Sealing Type
• Gasket Seal

• Section Shape
• Round

• Shape
• Other, Cylindrical with Flange

• Standard
• Other, ASTM A240/A276

• Surface Treatment
• Other, Polished

• Temperature Range
• -10C to 200C

• Tensile Strength
• 520 MPa

• Thickness
• 2 mm

• Tolerance
• 0.5 mm

• Usage
• Industrial Filtration

• Yield Strength
• 205 MPa

• Application
• other, Chemical, Pharmaceutical, Food Processing Industries

• Coating Type
• Uncoated

• Color
• Silver

• Connection
• Other, Flanged

• Connection Type
• Slip-on Flange

• Diameter
• 150 mm (widest), 30 mm (narrow end)

• Flexibility
• Rigid

• Length
• 200 mm

• Material
• Stainless Steel

• Material Grade
• SS 304

• Outer Diameter
• 150 mm (widest point)

• Product Type
• Other, Conical Filter

• Rated Pressure
• 5 Bar

• Sealing Type
• Gasket required

• Section Shape
• Round

• Shape
• Other, Conical

• Standard
• ASTM

• Surface Treatment
• Other, Polished

• Temperature Range
• -20C to 200C

• Tensile Strength
• 515 MPa

• Thickness
• 0.5 mm

• Tolerance
• 0.1 mm

• Usage
• Filtration

• Yield Strength
• 205 MPa
